Financing: Since this telescope is not immediately available it cannot be financed. However, when the telescope is ready to ship, financing for the balance can be arranged.
Each lens focuses light precisely, and the extreme broadband coatings on each surface enhance it even further. The images these telescopes produce with our dedicated field flatteners are well documented. Since these coatings transmit more than 99% in the visual spectrum and far above and below it, potential reflections are eliminated. Our SVX130T-R comes in a specially machined, light-weighted, temperature compensating steel lens cell that maintains the performance despite dropping temperatures.
What's Included?:
-
CNC mounting rings.
- Your choice between the Losmandy style TP013A or TP019, or the Vixen-Style TP012 mounting rail.
- The Stellarvue #HAN-2 handle is included.
-
Fully baffled, carbon Fiber tube and dew shield
-
Your choice of three different focusers (see below)
-
A retracting dew shield
-
Threaded metal dust cap

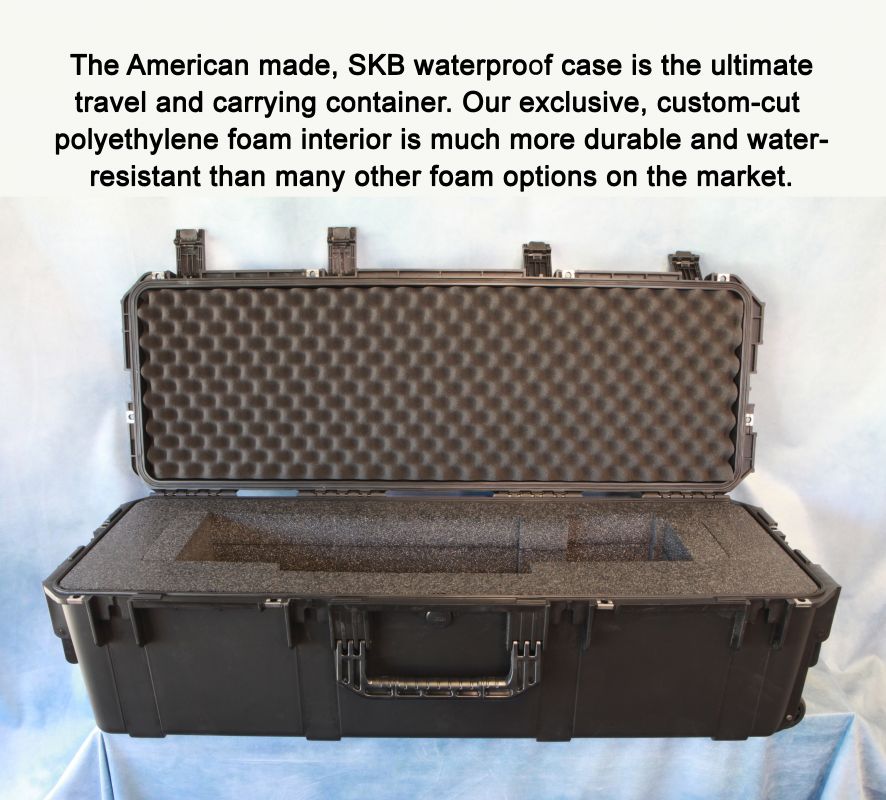

- American made, waterproof SKB case with custom cut polyethylene foam interior that does not absorb moisture like polyurethane foam and is much more durable. This is the best foam material available for a heavy telescope.
Optional Visual Accessories: You will need a star diagonal, eyepieces, mount, and tripod to observe with this telescope. You will find a finder scope helpful in locating objects. We recommend the following:
1. Finder Scope: Optional. We recommend the F050M2 finder scope. The proper ring system for this finder is the R050DA ring system.
2. Star Diagonal: Available separately. Please note: You can purchase our best 2" diagonal above and save $50.
3. Eyepieces: Available separately. We recommend a complete set of the Stellarvue Optimus eyepieces for this telescope. Save an additional $159 on the star diagonal and eyepieces when you select "
4. Mount and Tripod: For strictly visual use, the M002CS is a basic alt-azimuth mount that will hold telescopes up to the size of the SVX130T.
For imaging we recommend:
- Losmandy GM8-11G - A good portable tripod/mount
- Losmandy G11 - Offers better stability than the above
- Paramount MYT - A great choice for accurate long-exposure imaging
Optical Imaging Accessories:

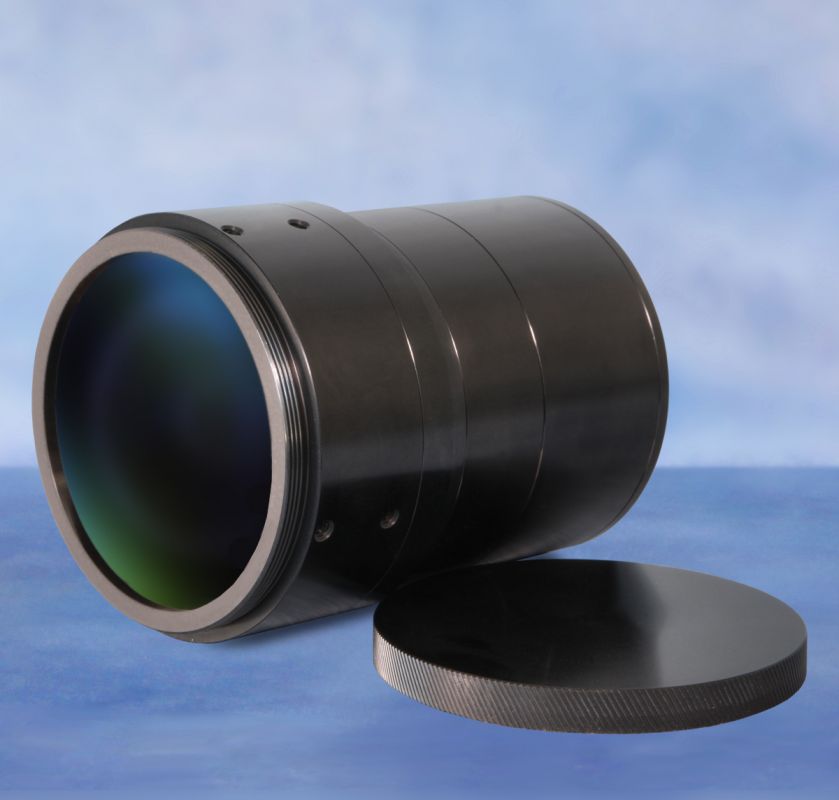

Photographic Field Flattener: To image with this telescope use the SFFX-3 photographic Field Flattener. Prior to the development of these our generic flatteners varied in specification. We highly recommend these flatteners to convert your telescope into a large imaging platform.
Photographic Focal Reducer/Field Flattener: This photographic field flattener and reducer is made exclusively by Stellarvue. It is designed as a full-frame, dedicated reducer/flattener specifically for our SVX130T and SVX140T apo triplet refractors.
It reduces the f-ratio on the SVX130T from f-7 to f-5.6 reducing its focal length to 728 mm. It reduces the f-ratio on the SVX140T from f-6.7 to f-5.4 reducing its focal length to 750 mm. As with all Stellarvue-designed photographic flatteners, these units have a very long back focus to accomodate using a variety of additional accessories. Stellarvue will match the camera thread and back focus of your imaging train as long as your camera thread is one of these: M42, M48, M-54, M-68, 2.156"-24, 3"-24.
Unlike former import reducer/flatteners we sold with a single extra low dispersion element, this unit uses two very low-dispersion, fluoro-phosphate glasses. All elements are fully-multicoated with broadband coatings designed for astro-imaging. The unit is large and designed to work with 3.5" focusers including Stellarvue telescopes sold with a 3.5" Feather Touch or the 3.5" Moonlight focuser.
Specifications
OBJECTIVE LENS:

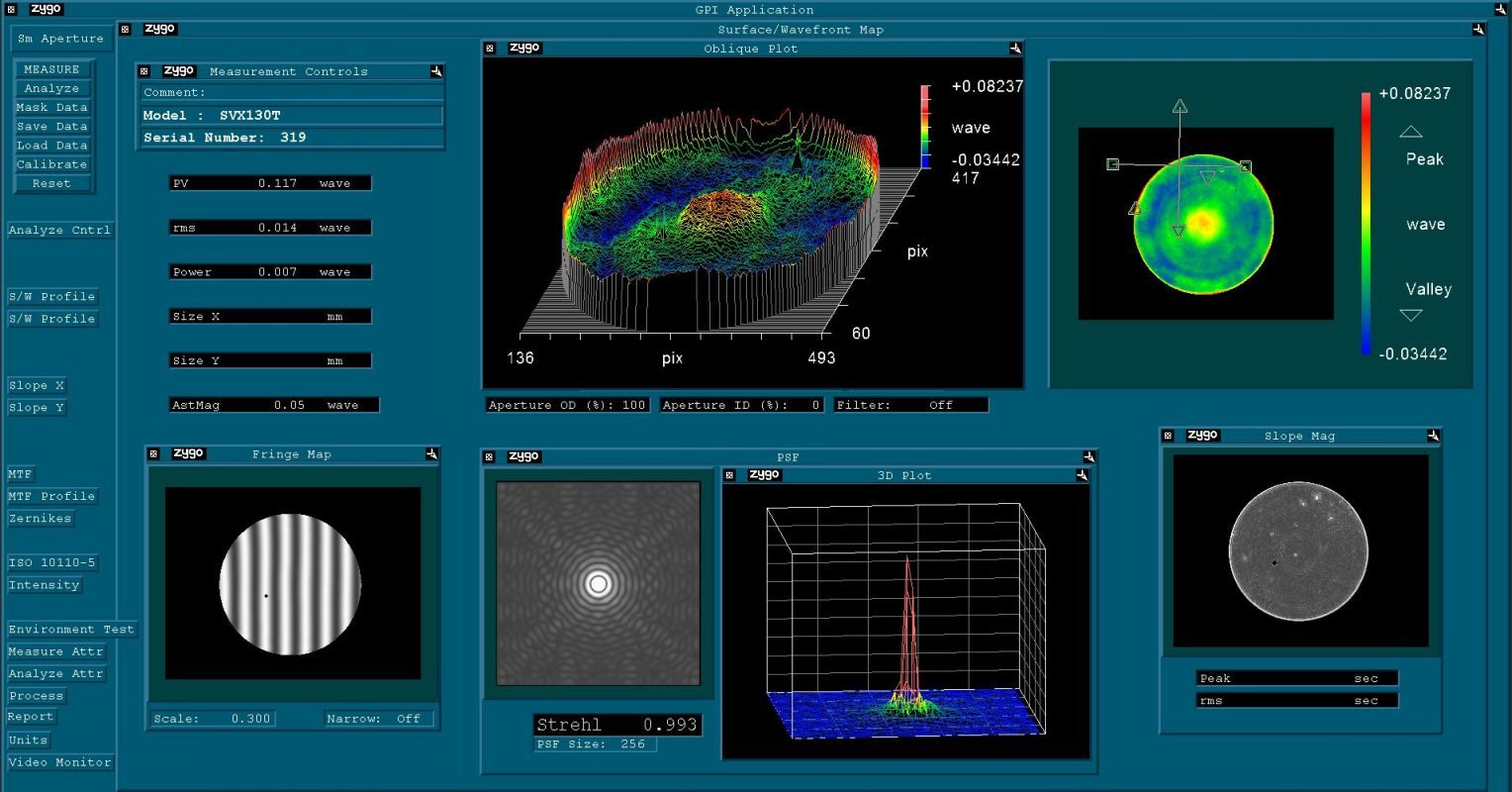

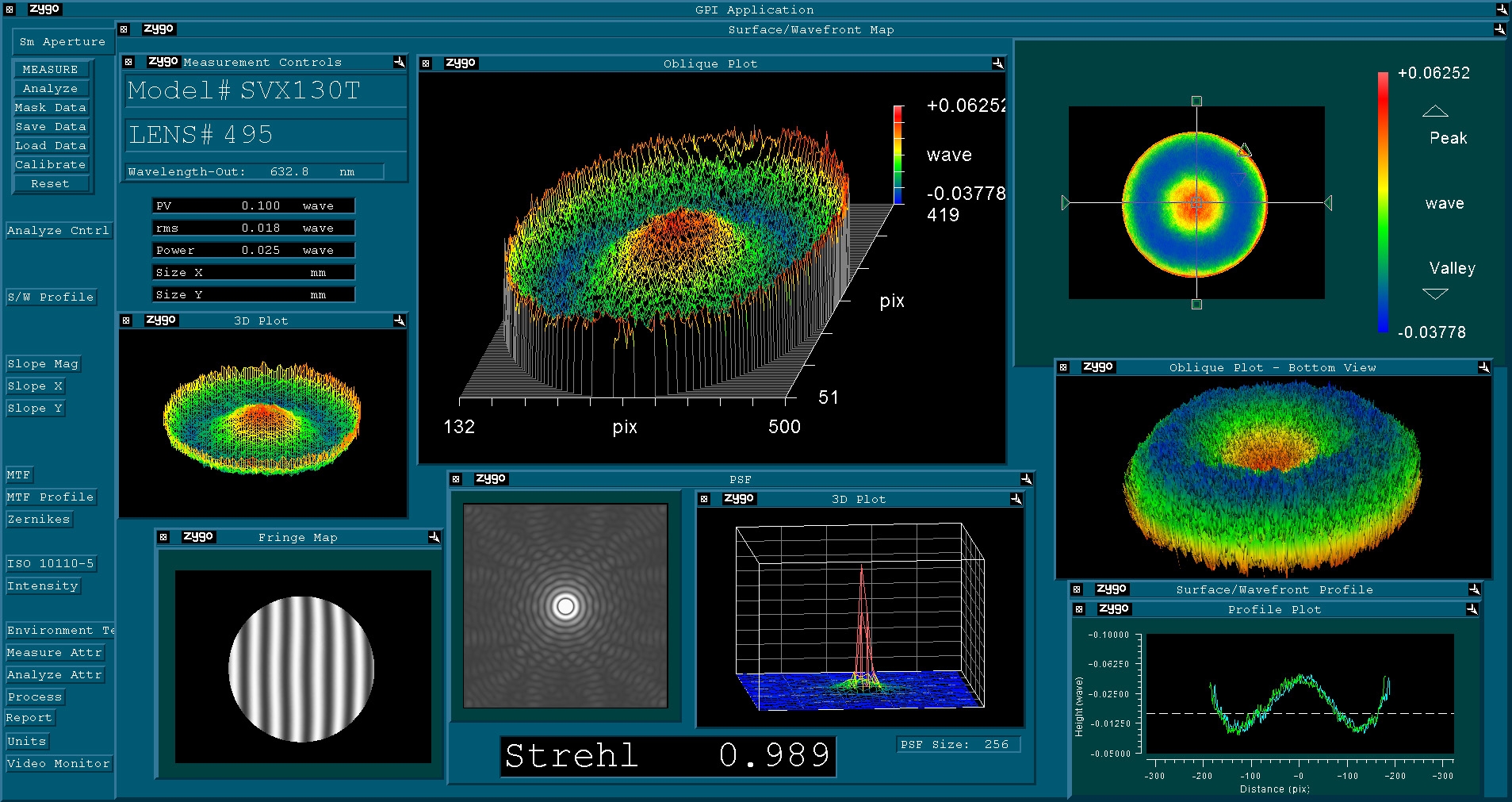

Air-spaced 130 mm, 910 mm focal length (f-7) fully multi-coated apochromatic triplet. The front lens is a durable, conventional glass, the second is a very expensive super low-dispersion (vD =94.93 - 95.10) element and the third is a Lanthanum element. Read more information on glass types here. Combining the best, high homogeneity optical glass with extreme wave front accuracy, these are the best 130 objectives we have ever offered. Each objective is meticulously figured in our optical shop in Auburn, California. Our final Zygo optical test report is included.
TUBE ASSEMBLY:
Carbon Fiber, fully baffled, 5.5” diameter tube. Telescope is 29.5" long with dew shield retracted and 35" long when extended.
DEW SHIELD:
6 5/8" (168 mm) diameter, 9 5/8" long retracting carbon fiber dew shield with black anodized fittings.
DIMENSIONS:
OTA: 5.5" diameter, 29.5" long with dew shield retracted and 35" long when extended.
WEIGHT:
Telescope tube weighs 19.8 pounds. Rings weigh 1.4 pounds each. Slightly heavier with the Moonlight focuser option.
FOCUSER:
You now have three focuser options. Save $500 and other the telescope with the standard 3" Stellarvue focuser and extension. Two other options increase the focuser size. They are the 3.5", the Feather Touch dual-speed rack and pinion focuser with 2" and 1.25" adapters for $500 more or the fully computerized Moonlight Nightcrawler 3.5" focuser for an additional $2704.
The Stellarvue 3" focuser weighs 3.12 lbs, the Feather Touch 3.5" focuser weighs 5.8 lbs, and the Moonlight Nitecrawler 3.5" focuser (WR35) weighs 8 lbs.
*Please note that the default color for the Nitecrawler will be BLACK unless specified otherwise. For a full list of available color options visit www.focuser.com.
RINGS:
Very heavy duty American-made CNC mounting rings using 6061 T6 aluminum plate. Five threaded 1/4-20 holes top and bottom spaced 1.5" and 60 mm apart with one in the center. 5 mm side hole for reflect finder mounting.
Rail: Your choice between the Losmandy-Style TP013A or TP019, or the Vixen-Style TP012 mounting rail.
Handle: The Stellarvue #HAN-2 handle is included.
CASE:
An American made; waterproof hard case is included with this telescope.
LIGHT GAIN:
345x (human eye = 1)
CONTRAST AND COLOR CORRECTION (1-10):
10
Click here for our online operator's manual: SVX130T and SVX130T-R Raptor
